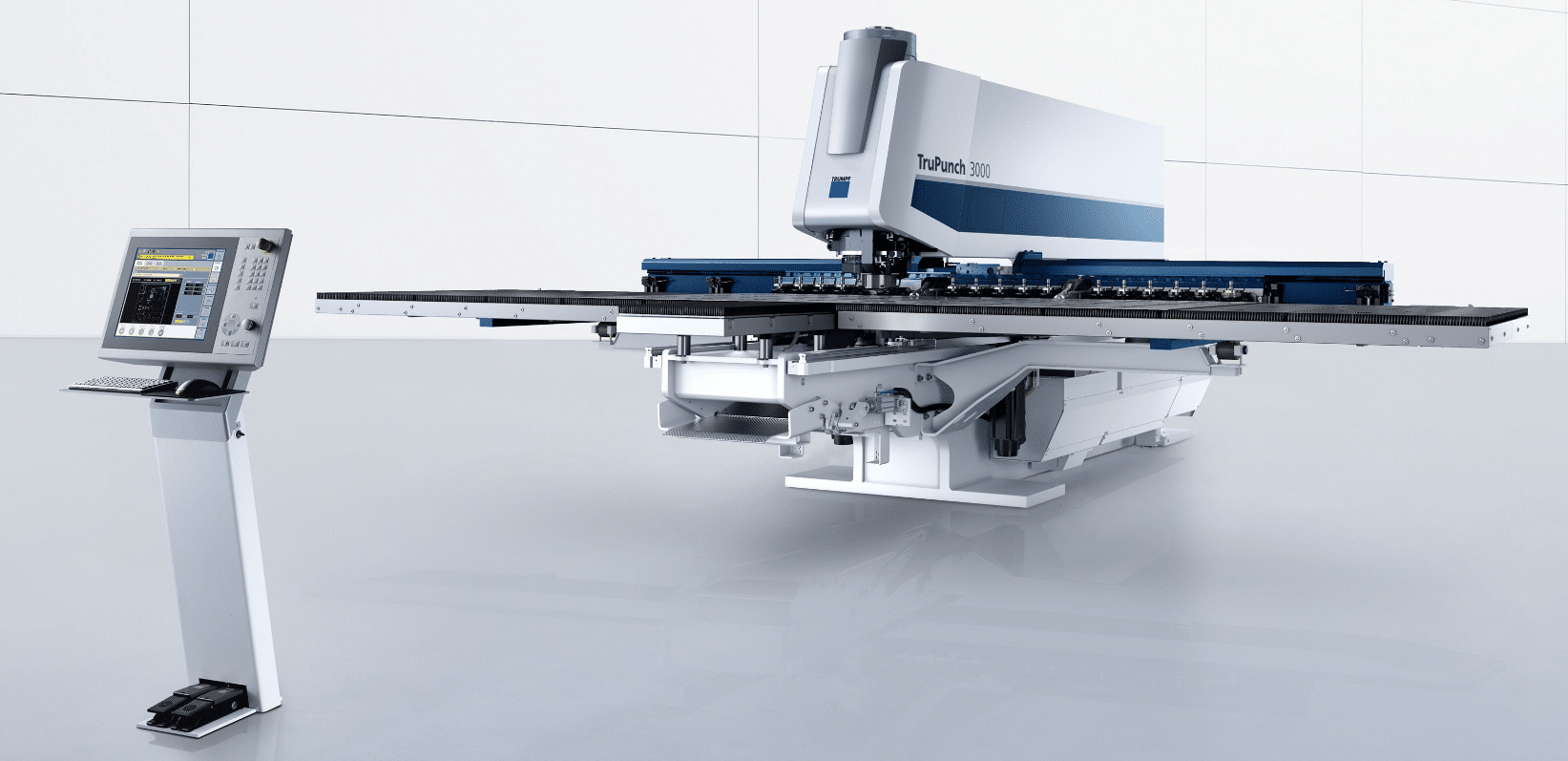

Trumpf TruPunch 3000 Punch

Trumpf TruPunch 3000 Punch

About the Machine

Trumpf TruPunch 3000 Punch – 20 ton, 4′ x 8′ travel, up to 1,000 strokes per minute

The compact TruPunch 3000 is your complete solution for versatile part processing. It achieves outstanding part quality thanks to the descending die and is easy to operate with the touchpoint HMI.

One machine, many options
You can punch, form, tap, emboss, mark, engrave and deburr with a TruPunch machine.
High-quality results
Scratch-free punching thanks to the descending die.
Clever parts handling, automatic loading and unloading
Removal and sorting solutions for small to large parts. The SheetMaster Compact loads and unloads, the SortMaster Compact sorts finished parts.
Compact, dynamic, and energy-saving
With the dynamic Delta Drive you need less than 30 m² installation surface and significantly less energy than with hydraulic drives.
TRUMPF tool concept
At TRUMPF you get top quality punching tools for creating threads or bends in your parts, for example.
Simple operation
Fewer operating steps, easy to learn – the touchpoint HMI makes it much easier to work with the machine.

Technical data

Specifications:

TruPunch 3000 medium formatTruPunch 3000 large format
WIDTH6282 mm7644 mm
DEPTH6548 mm7666 mm
HEIGHT2200 mm2200 mm
PUNCHING (E = 1 MM)800 1/min690 1/min
MARKING1000 1/min1000 1/min
PUNCHING MODE, X AXIS2500 mm3000 mm
PUNCHING MODE, Y AXIS1250 mm1550 mm
MAXIMUM SHEET THICKNESS6.4 mm6.4 mm
MAXIMUM WORKPIECE WEIGHT150 kg230 kg
MAXIMUM PUNCHING FORCE180 kN180 kN
MULTITOOL TOOL CHANGING TIME0.5 s0.5 s
NUMBER OF TOOLS/CLAMPS18 pieces / 2 pieces21 pieces / 3 pieces
MAXIMUM PART SIZE, PART REMOVAL FLAP, PUNCHING400 mm x 600 mm400 mm x 600 mm
MAXIMUM PART SIZE, FIXED CHUTE, PUNCHING (WITH MOVING TABLE)180 mm x 180 mm180 mm x 180 mm
AVERAGE POWER INPUT OF ACTIVE AUTO-SHUTDOWN0.5 kW0.5 kW
AVERAGE POWER INPUT IN PRODUCTION3.3 kW3.3 kW
