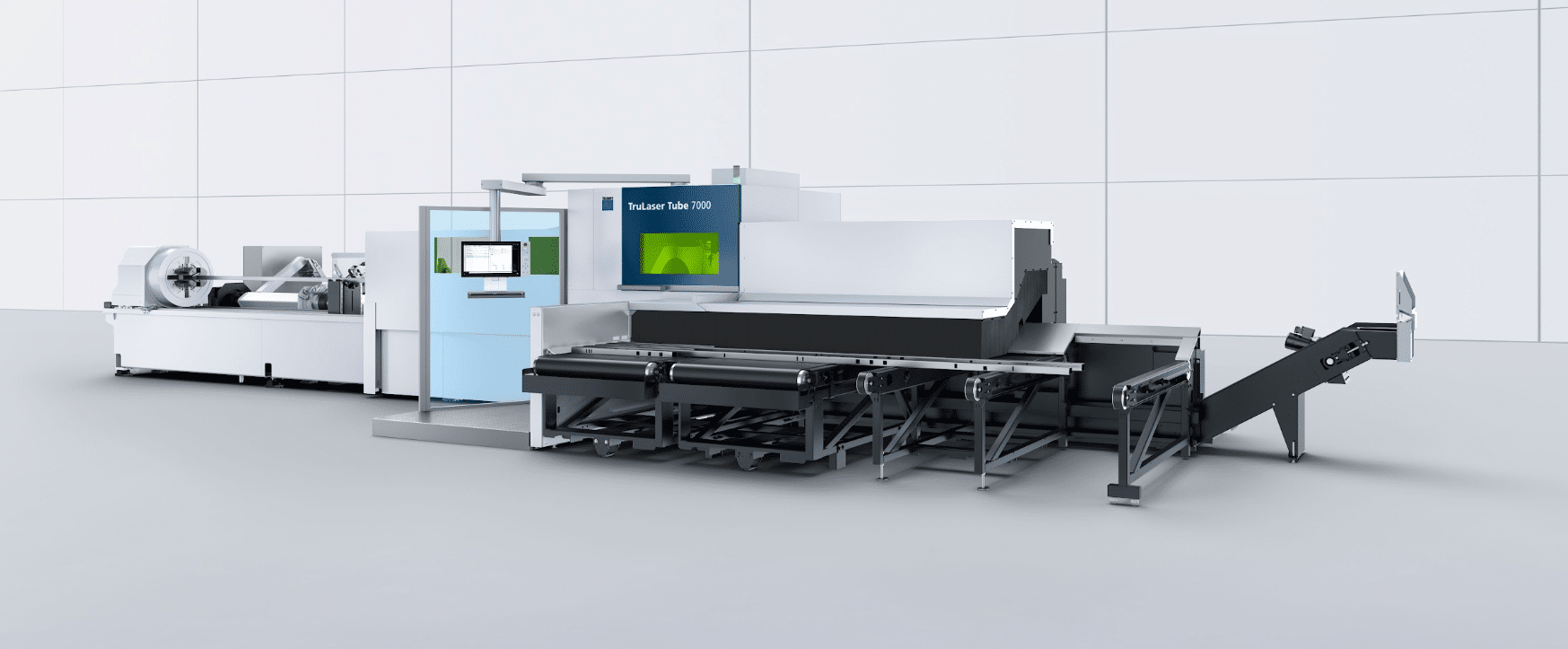

Trumpf TruLaser Tube 7000 fiber

Trumpf TruLaser Tube 7000 fiber

About the Machine

Trumpf TruLaser 7000 Fiber Tube Laser – 4,000 watt, 30′ length x 10″ max diameter with Bevel Head and tapping

The use of a solid-state laser in the TruLaser Tube 7000 fiber is combined with a wide range of processing options. The solid state laser provides fast and versatile processing. Thanks to the RapidCut option, the high laser intensity becomes evident even on small contours. This significantly increases productivity when producing parts from thin materials. The open concept of the TruLaser Tube 7000 fiber ensures optimal loading and unloading. Therefore, the machine is already effective for batches consisting of only one part. In addition, thanks to the Central Link interface, it fits perfectly into the Industry 4.0 concept more…

Diameter up to 254 mm
Process parts up to 254 mm in diameter and up to 10 mm wall thickness when producing structural steel pipes.
Reduced time for processing parts
With the RapidCut option, the high output intensity of the solid-state laser becomes evident even on small contours.
High quality bevel cuts
The Bevel Cut option allows you to make high-quality and precise bevel cuts at an angle of up to 45°.
Optimal cutting results
The TruDisk solid-state laser and high-quality cutting parameters ensure optimal results.
High process reliability
In complex processing, a modern sensor system monitors the continuity of the process.
Minimum auxiliary time
Thanks to the automatic setup of the TruLaser Tube 7000 fiber, production requires minimal downtime.

Technical data

Round Tube

MAXIMUM OUTSIDE DIAMETER254 mm

Rectangular Profile

MAXIMUM SIDE LENGTH AND OUTER CIRCLE DIAMETER220 mm / 254 mm

MAXIMUM RAW MATERIAL LENGTH FOR AUTOMATIC LOADING

FOR LOADMASTER TUBE 6.5 M6500 mm
FOR LOADMASTER TUBE 9.2 M9200 mm *1
FOR LOADMASTER TUBE 12.5 M12500 mm *1

FINISHED PART LENGTH

FOR UNLOADING UNIT 4.5 M4500 mm
FOR UNLOADING UNIT 4.5 M + 1.5 M6000 mm *1
FOR UNLOADING UNIT 6.5 M6500 mm *1
FOR UNLOADING UNIT 6.5 M + 1.5 M8000 mm *1

WORKPIECE WEIGHT

MAXIMUM PATH WEIGHT (STANDARD/OPTIONAL)40 kg/m

MAXIMUM RAW MATERIAL WEIGHT WITH AUTOMATIC LOADING

WITH LOADMASTER TUBE 6.5 M260 kg
WITH LOADMASTER TUBE 9.2 M368 kg *1
WITH LOADMASTER TUBE 12.5 M368 kg *1 *2

LASER-SPECIFIC DATA – TRUDISK 4001

MAXIMUM LASER POWER4000 W
MAXIMUM MATERIAL THICKNESS, MILD STEEL10 mm
MAXIMUM MATERIAL THICKNESS, STAINLESS STEEL6 mm
MAXIMUM MATERIAL THICKNESS, ALUMINUM6 mm
MAXIMUM MATERIAL THICKNESS, COPPER5 mm
MAXIMUM MATERIAL THICKNESS, BRASS5 mm
