Trumpf TruLaser 3060 Fiber Laser

Trumpf TruLaser 3060 Fiber Laser

About the Machine

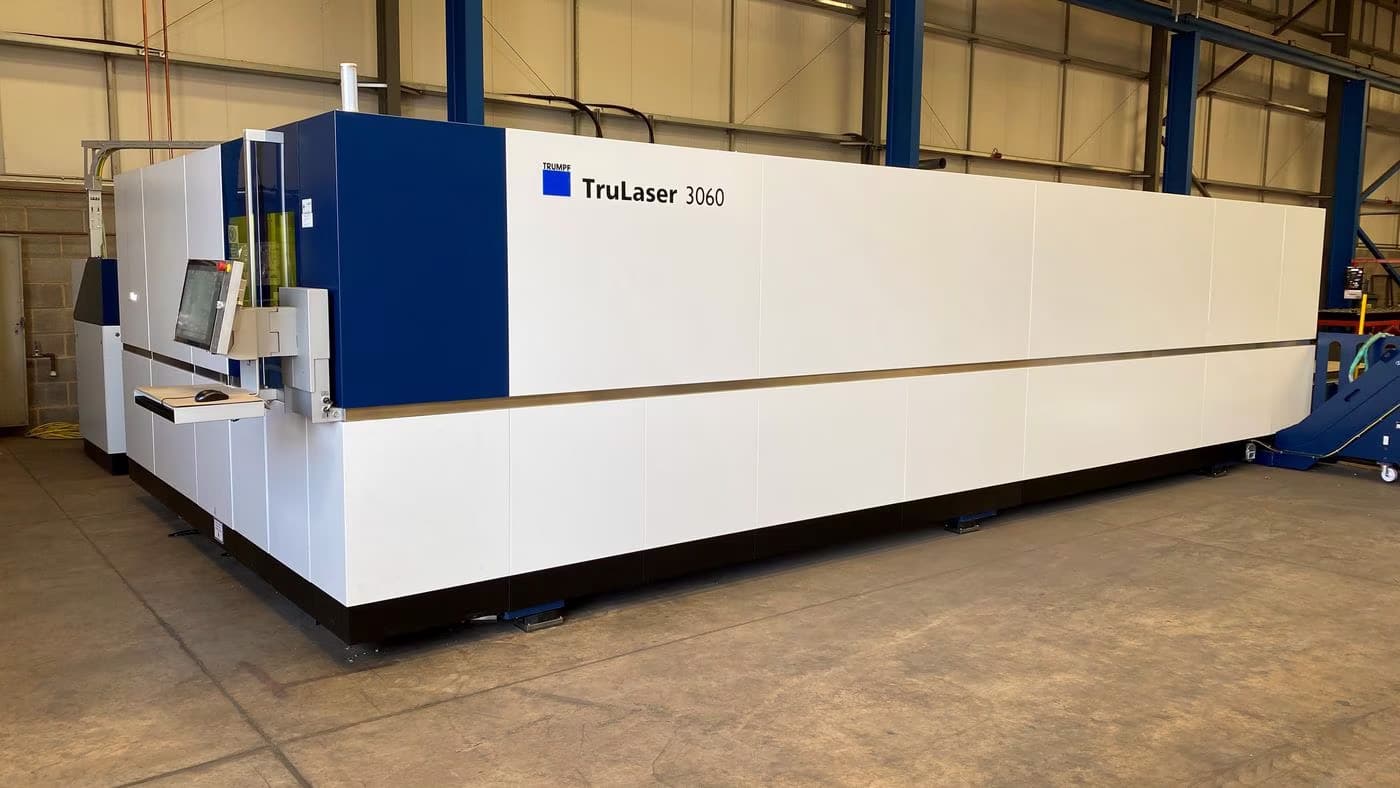

Trumpf TruLaser 3060 Fiber Laser – 24,000 watt, 8′ x 20′

TruLaser 3060 fiber  – the fast machine for all your cutting tasks. This machine impresses with its high level of flexibility and cost-effectiveness: You can cut all sheet thickness profitably. The TruDisk solid-state laser enables the processing of non-ferrous metals and provides you with a productivity benefit in thick and thin sheet. BrightLine fiber guarantees the highest edge quality and facilitates part removal. Numerous other functions ensure the highest reliability and performance possible.



The best results without compromise
BrightLine fiber facilitates excellent part quality and seamless part removal.
Utilize remainder sheets – post-produce parts easily
Using Drop&Cut, you can easily post-produce parts from remainder sheets.
Increased machine availability
Condition Guide always monitors the condition of your machine.
Accurate position recognition
DetectLine determines the position of the sheet and enables precise post-processing of cut parts.
High process reliability
In complex processing, a modern sensor system monitors the continuity of the process.
Maximum laser power
With an output of 24 kW, the TruDisk 24001 cuts up to three times faster
Intricate cutting even in thick mild steel
With the CoolLine function, you can even create small contours in thick mild steel.
Reliability without microjoints
Smart collision prevention reduces the risk of collisions during laser cutting.
Highspeed and Highspeed Eco
Highspeed and Highspeed Eco

Technical data

DIMENSIONS

Length15450 mm
Width6878 mm
Height2200 mm

WEIGHT

WEIGHT OF BASIC MACHINE19800 kg*1

MAXIMUM SPEED

SIMULTANEOUS170 m/min

WORKING RANGE

X AXIS6000 mm
Y AXIS2500 mm
MAXIMUM WORKPIECE WEIGHT WITHOUT HEAVY-DUTY PALLET CHANGER2900 kg
MAXIMUM WORKPIECE WEIGHT WITH HEAVY-DUTY PALLET CHANGER4900 kg
MAXIMUM WORKPIECE WEIGHT ON BOTH PALLETS WITH HEAVY-DUTY PALLET CHANGER5700 kg*2

LASER-SPECIFIC DATA – TRUDISK 24001

MAXIMUM LASER POWER24000 W
MAXIMUM SHEET THICKNESS, MILD STEEL40 mm
MAXIMUM MILD STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS60 mm
MAXIMUM SHEET THICKNESS, STAINLESS STEEL40 mm
MAXIMUM STAINLESS STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS60 mm
MAXIMUM SHEET THICKNESS, ALUMINUM40 mm
MAXIMUM SHEET THICKNESS, COPPER16 mm
MAXIMUM SHEET THICKNESS, BRASS12.7 mm
