Hexagon Absolute Arm V3P

Hexagon Absolute Arm V3P

About the Machine

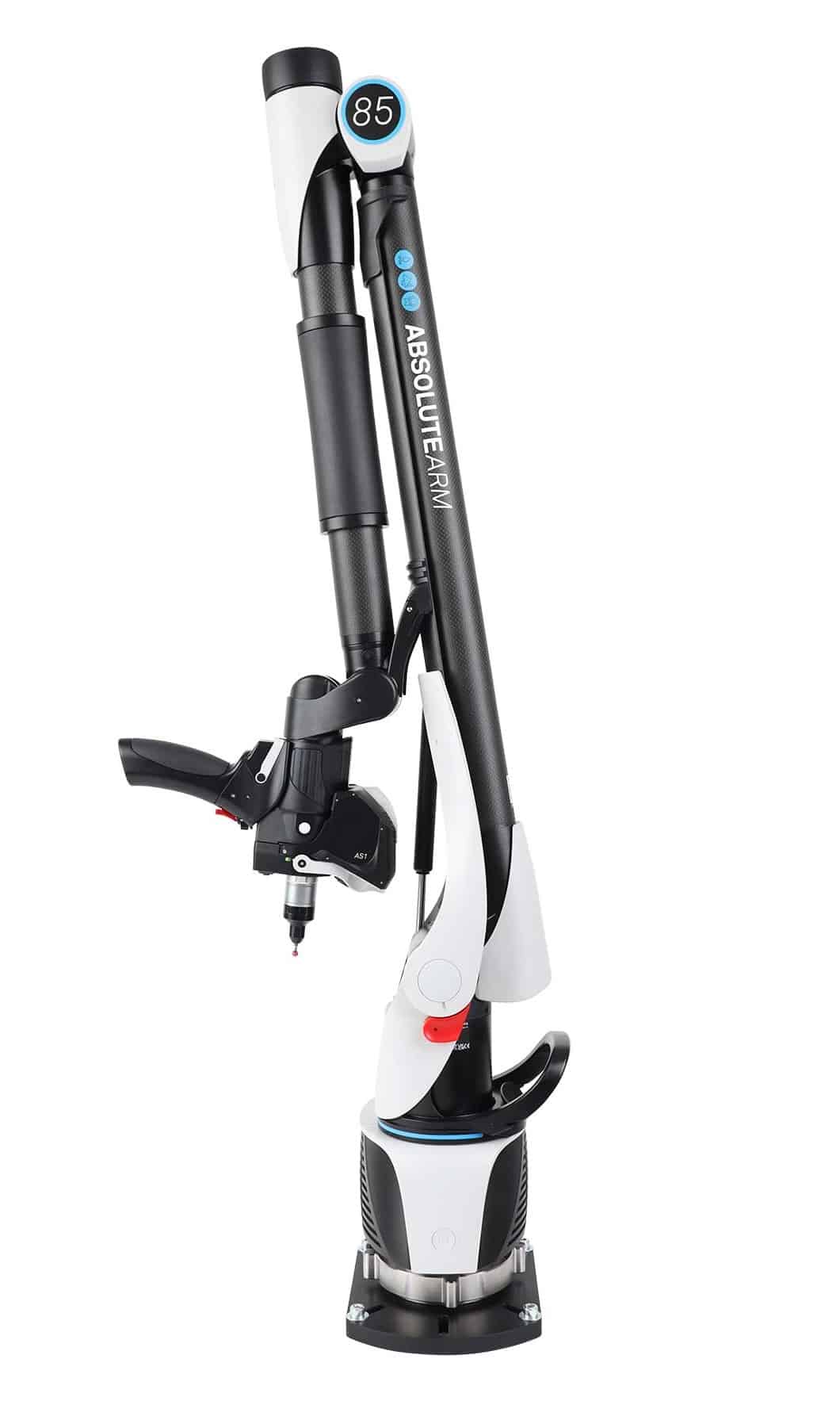

Hexagon Absolute Arm V3P, 8530, 7-Axis

Built on a foundation of high-tech carbon-fibre tube construction, the Absolute Arm maintains strength and thermal stability under any environmental conditions, offering reliable accuracy whatever the environment.

85 series v3 7-axis Absolute Arm with 3.0 m measurement volume.

Includes:

  • Absolute Encoders and SMART Sensors
  • Arm designed to IP54 standard for protection against dust and moisture
  • Zero-G Counterbalance
  • TESA TKJ Ball Probes: 3 mm Ruby / 6 mm Ruby / 15 mm Steel
  • Certificate of probing accuracy to ISO 10360-12
Probing and scanning
High-accuracy touch probing performance together with high-end, high-productivity scanning from the Absolute Scanner AS1 or AS1-XL – the Absolute Arm 7-Axis is a multifunctional measurement tool that delivers clear productivity improvements through increased usability and versatility.
Absolute Encoders
The renowned Absolute Encoders placed in every articulated joint of the Absolute Arm make it the only portable measuring arm on the market to eliminate encoder referencing and frustrating system warm-up times, boosting productivity while delivering high-end accuracy.
Advanced materials
Built on a foundation of high-tech carbon-fibre tube construction, the Absolute Arm maintains strength and thermal stability under any environmental conditions, offering reliable accuracy whatever the environment.
Complete protection
The world’s first portable measuring arm with an IP54 rating, and guaranteed functionality in temperatures of up to 45 degrees Celsius, the Absolute Arm is the perfect partner for measurement in even the most challenging environmental conditions.
Configurable wrist
The ergonomically designed wrist of the Absolute Arm 7-Axis features an OLED measurement display screen, interchangeable grips, exchangeable probe and scanner mountings and a selection of control buttons, making complete one-handed operational efficiency easier than ever before.
Effortless movement
Intuitively located infinite-rotation low-friction grips have been designed to maximise accuracy by minimising user fatigue and making every movement light and easy to handle – together with a sophisticated counterbalance system, the Absolute Arm is the most agile arm on the market.
Essential security
Stow and lock in place the Absolute Arm between measurements with the HomeDock and SmartLock functions, ensuring that scanners and probes remain undamaged and factory-accurate.
Absolute portability
Even the largest Absolute Arm 7-Axis systems weigh only 10.5 kilograms, making setup and repositioning a quick and easy process, while the functionally designed and shock-resistant carry case keeps everything secure during transport.
Asset management
Every Absolute Arm is now compatible with the Metrology Asset Manager solution, allowing users to monitor arm health and performance in real time from anywhere in the world.

Technical data

SPECIFICATIONS:

ModelEUNI1PSIZE2LDIA3PFORM4SSA5Weight6Max. reach
8520-70.029 mm0.010 mm0.038 mm0.021 mm0.045 mm9.0 kg2.48 m
8525-70.031 mm0.012 mm0.048 mm0.021 mm0.048 mm9.3 kg2.98 m
8530-70.057 mm0.020 mm0.083 mm0.038 mm0.066 mm9.6 kg3.48 m
8535-70.069 mm0.024 mm0.099 mm0.045 mm0.080 mm9.9 kg3.98 m
8540-70.084 mm0.030 mm0.120 mm0.050 mm0.091 mm10.2 kg4.48 m
8545-70.113 mm0.048 mm0.140 mm0.065 mm0.148 mm10.5 kg4.98 m

RS5 LASER SCANNER SPECIFICATION

Accuracy0.028 mm (2σ)7
Point Acquisition Rate752 000 points/s
Points per LineMax. 7520
Line RateMax. 100 Hz
Line Width (mid)115 mm
Standoff165 ± 50 mm
Minimum Point Spacing0.011 mm (line)
System Scanning Certificationyes
Laser Class2M
Operating Temperature5–40°C
Weight0.4 kg
