Equipment
Hexagon Absolute Arm

Hexagon Absolute Arm

About the Machine

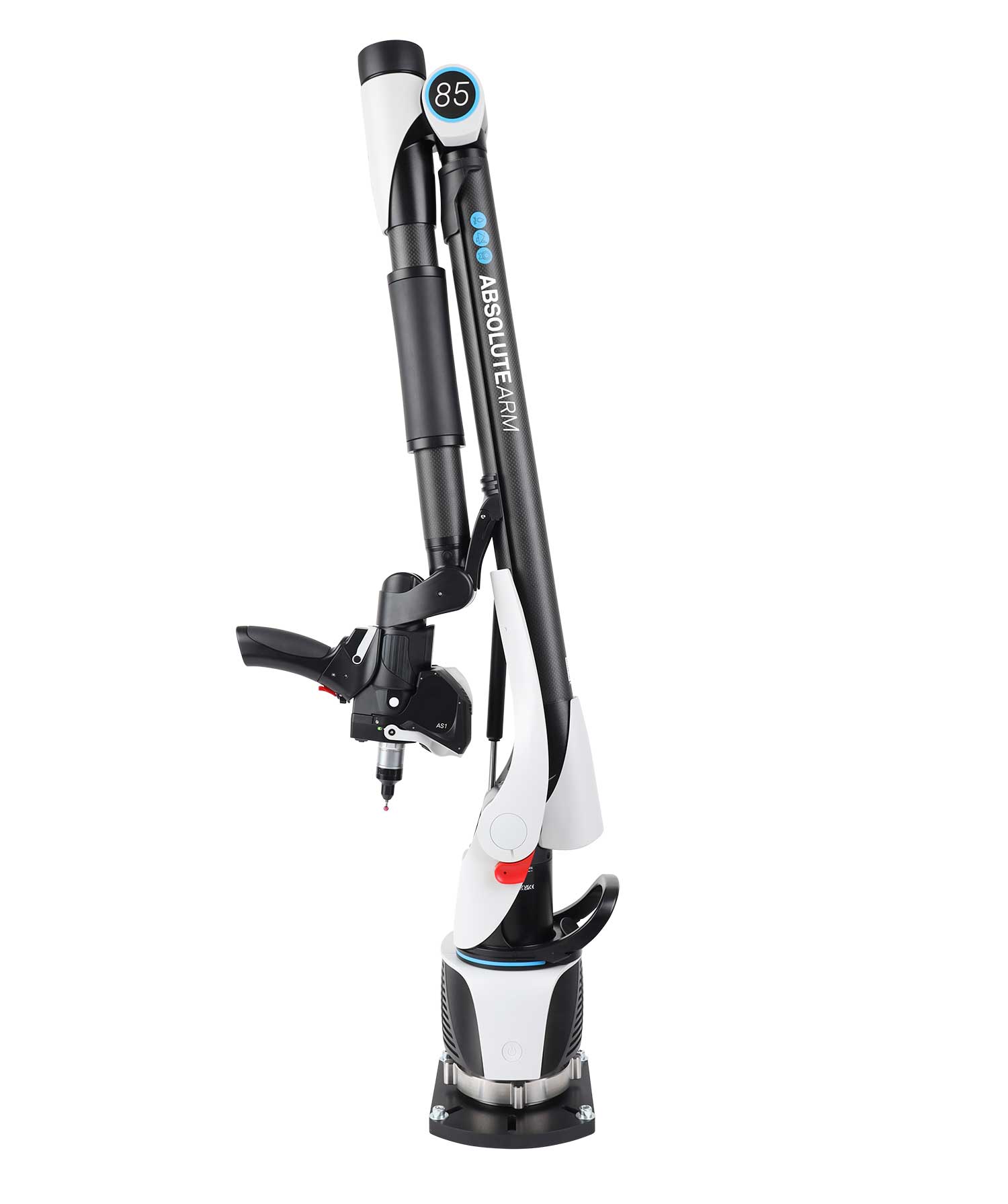

Hexagon Absolute Arm V3P, 8530, 7-Axis

85 series v3 7-axis Absolute Arm with 3.0 m measurement volume.  Each Absolute Arm 7-Axis model now boasts an on-wrist touchscreen display that allows for the changing of important measurement settings and instant viewing of measurement results and critical notifications. The wrist touchscreen is compatible with multiple major metrology software platforms and makes measuring with the Absolute Arm even easier than ever.

Probing and scanning
The Absolute Arm 7-Axis, with AS1 or AS1-XL scanners, offers high-accuracy touch probing and high-productivity scanning for enhanced usability and versatility.
Absolute Encoders
The Absolute Arm's Absolute Encoders eliminate referencing and warm-up times, boosting productivity and providing high-end accuracy.
Advanced materials
The Absolute Arm’s carbon-fiber construction ensures strength and thermal stability, providing reliable accuracy in any environmental conditions.
Complete protection
The Absolute Arm, with IP54 rating and functionality up to 45°C, excels in challenging environmental conditions.
Configurable wrist
The Absolute Arm 7-Axis wrist has an OLED display, interchangeable grips, and one-handed operational efficiency with control buttons.
Effortless movement
Infinite-rotation low-friction grips and a counterbalance system maximize accuracy and reduce fatigue, making the Absolute Arm highly agile.
Essential security
HomeDock and SmartLock functions secure the Absolute Arm, protecting scanners and probes, and ensuring factory-accurate, undamaged measurements.
User feedback
In harsh industrial environments, the Absolute Arm's visual, acoustic, and haptic feedback ensures efficient and uninterrupted measurement processes.
Absolute portability
Weighing only 10.5 kg, the Absolute Arm 7-Axis is easy to setup and reposition, with a secure, shock-resistant carry case.

Technical data

Specifications

Absolute Encoders and SMART Sensors
Arm designed to IP54 standard for protection against dust and moisture
Zero-G Counterbalance
SpinKnob and SpinGrip for improved operator comfort
Haptic Feedback
Wrist display
Pistol Grips of 3 different sizes
Fixed Base Plate
Hook wrench for 4.5 inch base
TESA TKJ Ball Probes: 3 mm Ruby / 6 mm Ruby / 15 mm Steel
Certified sphere artefact for accuracy checks
RDS interface software
Travel Case and IP54 protected Accessory Case
Certificate of probing accuracy to ISO 10360-12
1 year subscription of Hexagon’s Metrology Asset Manager
24 Month Warranty (The warranty of two (2) years is valid only if a service check is performed at a Hexagon Service Centre during the first year of use).
