Equipment
1 Trumpf TruLaser 5030 Fiber Lasers

1 Trumpf TruLaser 5030 Fiber Lasers

About the Machine

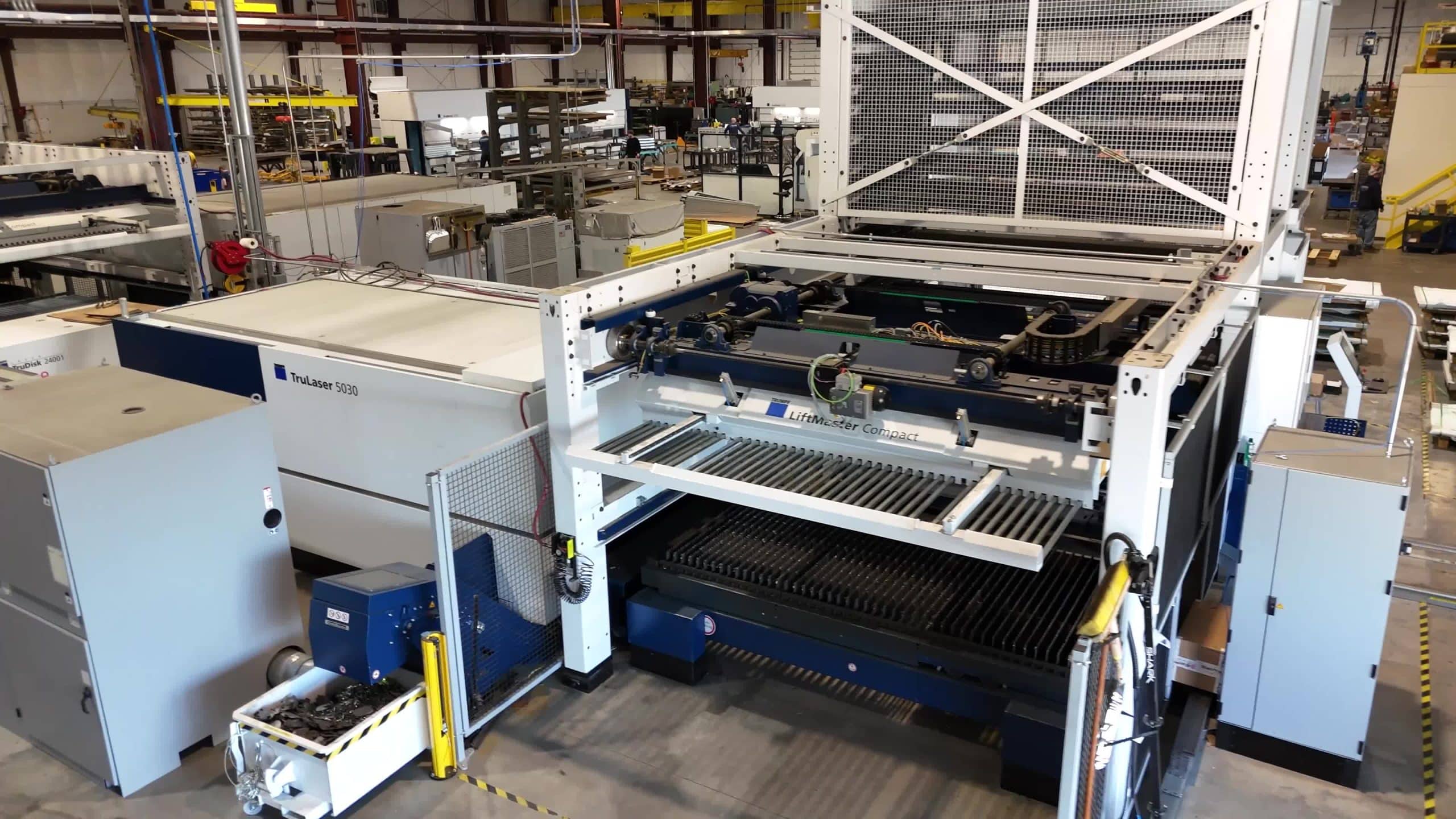

1 Trumpf TruLaser 5030 Fiber Lasers 24,000 watt with TruStore and LiftMaster

The TruLaser 5030 fiber impresses with it’s high processing speed and reproducible, high part quality – even for complex contours. You can achieve excellent feed rates thanks to the solid-state laser with up to 24 kW laser power. Clever assistant systems make the complete machining process more productive and reliable than ever. Operator involvement is low; non-productive times are minimal.

The best results without compromise
BrightLine fiber facilitates excellent part quality and seamless part removal.
Highspeed and Highspeed Eco
A new nozzle design reduces nitrogen consumption by up to 70% – for double the sheet throughput.
Full power of the laser on the sheet metal
Utilize the full power of the laser: our machines are designed so that every single kW hits the sheet. This means that not only do you achieve high feed rates, but you are also able to process the workpiece productively.
Intricate cutting even in thick mild steel
With the CoolLine function, you can even create fine contours in thick mild steel.
Maximum laser power
With an output of 24 kW, the TruDisk 24001 cuts up to three times faster.

Technical data

DIMENSIONS

Length9229 mm
Width6145 mm
Height2200 mm

WEIGHT

WEIGHT OF BASIC MACHINE11700 kg*1

MAXIMUM SPEED

SIMULTANEOUS280 m/min

WORKING RANGE

X AXIS3000 mm
Y AXIS1500 mm
MAXIMUM WORKPIECE WEIGHT WITHOUT HEAVY-DUTY PALLET CHANGER1100 kg
MAXIMUM WORKPIECE WEIGHT WITH HEAVY-DUTY PALLET CHANGER1800 kg
MAXIMUM WORKPIECE WEIGHT ON BOTH PALLETS WITH HEAVY-DUTY PALLET CHANGER2200 kg*2

LASER-SPECIFIC DATA – TRUDISK 24001

MAXIMUM LASER POWER24000 W
MAXIMUM SHEET THICKNESS, MILD STEEL40 mm
MAXIMUM MILD STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS60 mm
MAXIMUM SHEET THICKNESS, STAINLESS STEEL40 mm
MAXIMUM STAINLESS STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS60 mm
MAXIMUM SHEET THICKNESS, ALUMINUM40 mm
MAXIMUM SHEET THICKNESS, COPPER16 mm
MAXIMUM SHEET THICKNESS, BRASS12.7 mm
